Precision drive control
Configurable PWM, regenerative braking, and three drive modes for brushed DC motors across robotics, industrial, and light-EV builds.
PWM · Regen · 3 modesPrecision control, any application.

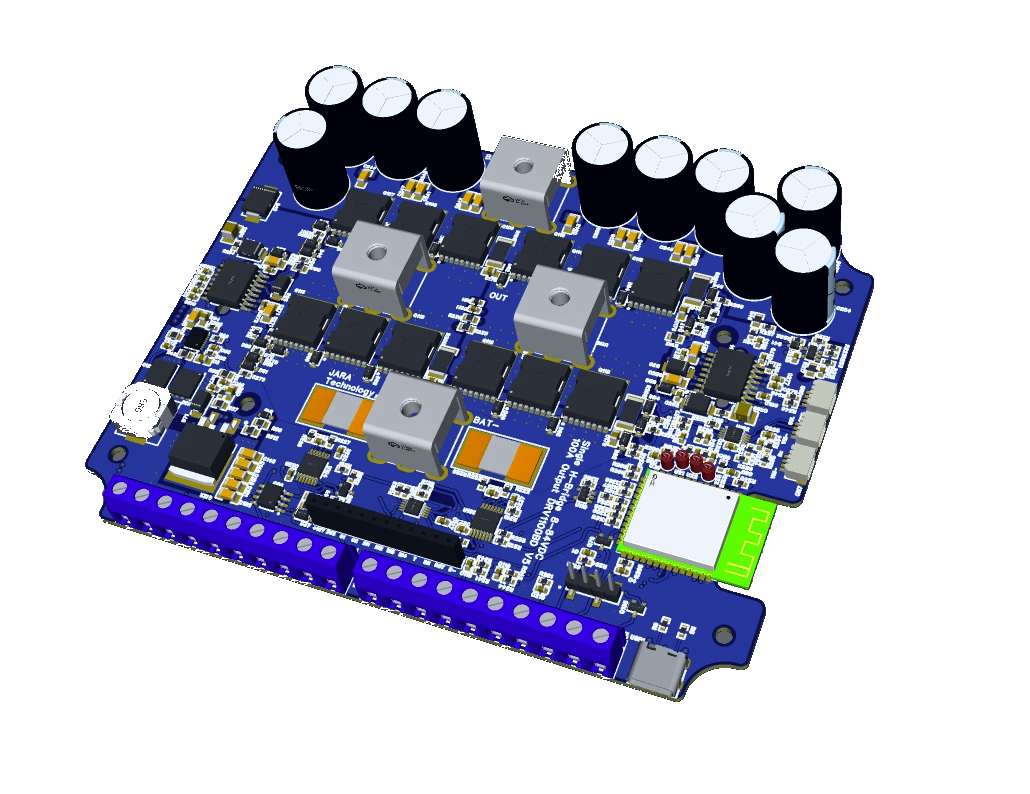

The DRV1100BDV5 is a single-channel controller for brushed DC motors — robotics, industrial drives, e-bikes, go-karts, and light EVs. Configure, monitor, and protect from any browser.
DRV1100BDV5
Voltage Range
12–85V
Continuous
100A
Peak (10 s)
180A
PWM Frequency
1–20kHz
Getting started
Connect. Configure. Control.
No PLC, no proprietary software. Power on the controller and run the whole setup from a browser.
01
Connect
Power on the DRV1100BDV5 and join its built-in Wi-Fi access point, or pair over Bluetooth. No drivers, no app — any modern browser.
Wi-Fi · BLE02
Configure
A guided setup wizard calibrates throttle input, sets current limits, selects a drive profile, and defines safety thresholds.
Profiles · Limits03
Control
Deploy with confidence. Watch live telemetry, push OTA firmware updates, and review fault history from any browser.
Telemetry · OTAWhat you get
A motor controller, with a workshop behind it.
Hardware control with a modern software experience — and the documentation, tooling, and engineering notes to back it.

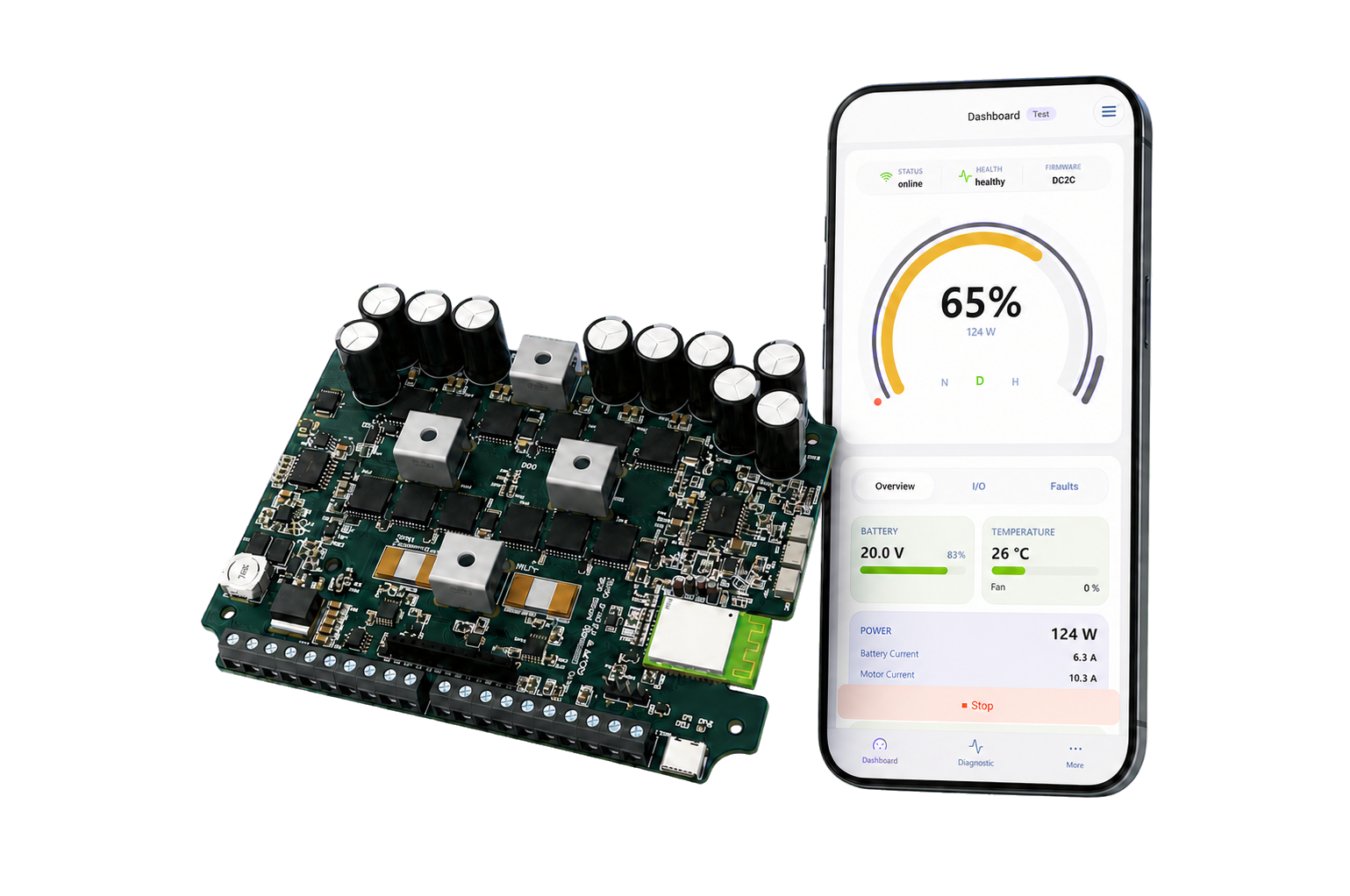

Live diagnostics
Real-time gauges and telemetry tiles stream voltage, current, duty, and temperature straight from the controller's web UI.
Real-time signalAdvanced safety system
Multi-layer protection: over-voltage, over-current, over-temperature, and stall detection cut output before damage occurs.
OVP · OCP · OTP · Stall
