Configure auxiliary outputs

Overview
Details

Open Custom Output and identify Output 1 or Output 2 by the actual board terminal. Check the output/load ratings before wiring it. Missing tiles can be correct for an unsupported board.

Step 1 / 4

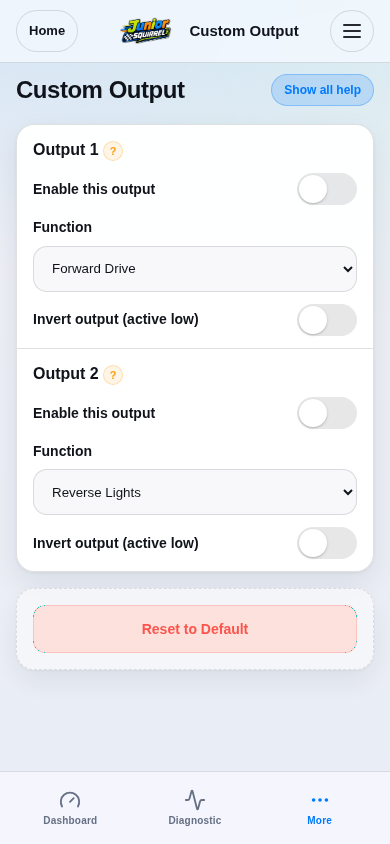

Find the output on your boardSimulation
Production route rendered from firmware-served assets; board features reflect DRV1100BDV5.
View 1 / 2

Enlarged screen

Production route rendered from firmware-served assets; board features reflect DRV1100BDV5.

Capture details

Production route rendered from firmware-served assets; board features reflect DRV1100BDV5.
